Straight Seam Welded Pipe Hydrotester

Straight Seam Welded Pipe Hydrotester

Description

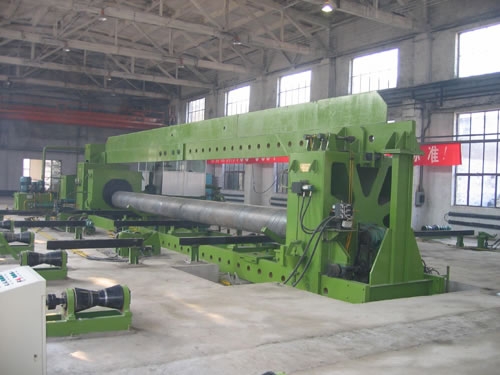

Hydrostatic testing machine for straight seam welded pipe is mainly used to have a pressure test on the straight seam welded pipe. This hydrostatic testing machine for straight seam welded pipe has the functions of computer recording, storing, printing and testing the results.

Production Process
The production process of hydrostatic testing machine for straight seam welded pipe is as follows.
Loading Pipe → Rinsing → Connecting Pipe → Filling Water → Pressuring → Pressure Maintaining → Loosening the Pressure → Draining → Exit Pip

Main Projects and Clients on Hydrostatic Tester

No. Equipment Clients
1 Φ89 Hydrotester (36 MPa two position) Wuxi Sujia Steel Pipe Co., Ltd (China)
2 Φ89 Hydrotester (36 MPa two position) Zhangjiagang Zhongyuan Pipe Manufacturing Co., Ltd
3 Φ114 - 273 Hydrostatic tester Tianjin Baolai Industrial & Trade Co., Ltd
4 Φ114 - 273 Hydrotester Tianjin Zongshun Industrial & Trade Co., Ltd
5 Φ114 - 355 Steel pipe hydrotester (60MPa) Tianjin Lianzong Steel Pipe Co., Ltd
6 Φ114 - 426 Steel pipe hydrotester (60MPa) Haicheng Steel Pipe Co., Ltd (China)
7 Φ219 - 508 Steel pipe hydrotester (60MPa) General Steel Pipe Co., Ltd in Korea
8 Φ219 - 530 Steel pipe hydrotester (60MPa) Russia Chelny Steel Pipe Company

Available Types

No.   Model     Specification (mm)     Length (m)     Pressure (Mpa)     Capacity (kW)     Machinery Floor Area  (m2)
1 ZFSY-60 Φ20 - Φ60 6-12 ≤ 60 150 5 × 12
2 ZFSY-100 Φ50 - Φ114 6-12 ≤ 60 150 5 × 12
3 ZFSY-160 Φ60 - Φ168 6-12 ≤ 60 170 5 × 12
4 ZFSY-220 Φ89 - Φ219 6-12 ≤ 60 170 5 × 12
5 ZFSY-350 Φ140 - Φ355 6-12 ≤ 60 200 6 × 20
6 ZFSY-400 Φ168 - Φ426 8-12 ≤ 60 200 6 × 22
7 ZFSY-500 Φ219 - Φ508 8-12 ≤ 60 220 6 × 22
8 ZFSY-600 Φ219 - Φ610 8-12 ≤ 60 300 6 × 22
9 ZFSY-700 Φ325 - Φ711 8-12 ≤ 60 500 6 × 22

Hangzhou Roll Forming is located in the high and new technology industrial development zone in Hangzhou, the heavy industrial base in China. Our company relays on the good science and technology environment and devotes ourselves to the perfection of hydrostatic testing machine for straight seam welded pipe. If you are interested in hydrostatic tester, please feel free to contact us.
